So I am going to make a thread that tells you exactly what motor and transmission combination that will work for the accord 03-07 v6 if you want to swap it. I am tired of people sending me PM. Now start reading or have something read it to you, and learn.
Engine
Accord 03-05 stock motor J30A4 (direct drop in, swap intake manifold if AT)
The J30A4 pushed output to 240 hp (180 kW) and 212 lb·ft (287 N·m), compression ratio (10:1)
bore 86mm x stroke 86mm
Accord 06-07 Stock motor J30a5 (direct drop in, swap intake manifold if AT)
output to 244 hp (SAE Net 08/04) and 211 lb·ft (SAE Net 08/04) of torque, compression ratio (10:1)
bore 86mm x stroke 86mm
JDM inspire engine 2003-2007 J30??
2997 cm3 / 183.6 cui
Horsepower net:
184 kW / 250 PS / 247 hp (JIS net)
Torque net:
296 Nm / 218 ft-lb
Compression ratio 10.5:1
bore 86mm x stroke 86mm
Acura TL j32a3 2004-2006 (direct swap, swap intake manifold if AT)
Output is 270 hp and 232 lb·ft (315 N·m) @ 3500-5500 rpm
rating system changed in 2006 So 258 hp 232 lb·ft (315 N·m) @ 3500-5500 rpm. Same engine block just now underrated
bore 89mm x stroke 86mm
Acura TL J32a3 07-08 *I call this version 2 because of the changes in the bellhousing (not a direct fit, must swap in bell housing from Accord gen8 accord 2008-2010, must repin the injectors or use stock 270cc, and also must swap IM if AT)
SAE **new rating system* corrected hp for the 2006-2008 TL is 258 hp 232 lb·ft (315 N·m) @ 3500-5500 rpm
bore 89mm x stroke 86mm
2003-2006 Acura MDX J35a5 (not a direct fit, must swap in bell housing from Accord gen8 accord 2008-2010, must repin the injectors or use stock 270cc, and also must swap IM if AT)
Displacement: 3,471 cc (3.471 L; 211.8 cu in)
Bore and stroke: 89 mm (3.5 in) x 93 mm (3.7 in)
Power: 255 hp (190 kW) @ 5800 rpm
Torque: 250 lb·ft (340 N·m) @ 3500 rpm

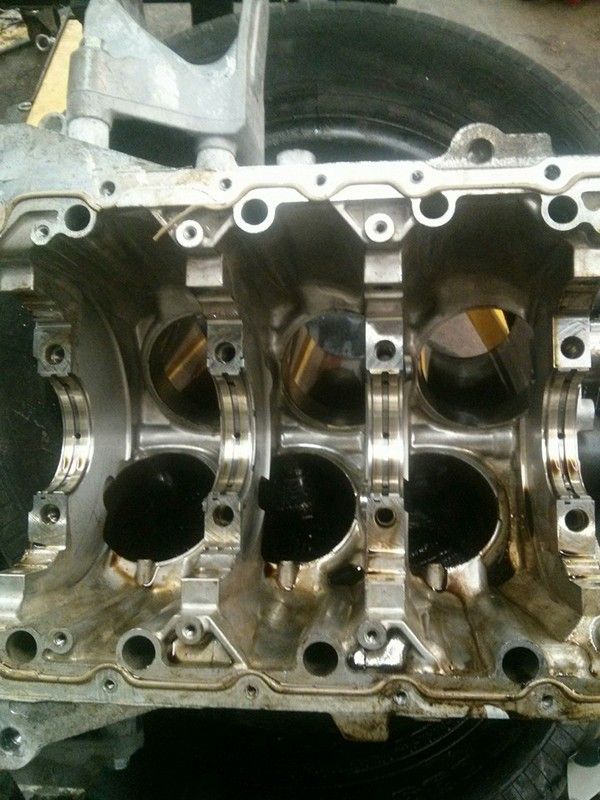

** Note no oil jets on the J35a5, Credits goes to Michael William Gonsalves for the pix




2005+ Honda Odyssey Van, LX, EX, 2005 Honda Pilot J35A6 (direct drop in with some modification to the coolant crossover pipe/passage {must switch over from the accord}, must repin the injectors or use stock 270cc, and also must swap IM if AT)
Displacement: 3,471 cc (3.471 L; 211.8 cu in)
Bore and stroke: 89 mm (3.5 in) x 93 mm (3.7 in)
Power: 255 hp (190 kW) @ 5600 rpm
Torque: 250 lb·ft (340 N·m) @ 4500 rpm
Compression: 10.0:1
2005-2008 Acura RL, 2007-2008 Acura TL Type-S J35a8 (not a direct fit, must swap in bell housing from Accord gen8 accord 2008-2010, must repin the injectors or use stock 270cc, also must swap IM if AT)
Displacement: 3,471 cc (3.471 L; 211.8 cu in)
Bore and stroke: 89 mm (3.5 in) x 93 mm (3.7 in)
Power: 286 hp (213 kW) @ 6200 rpm[2]
Torque: 256 lb·ft (347 N·m) @ 5000 rpm[2]
J35z motors. Unknown and oil pump sensor is different from the stock location. Would not recommend using if possible
J35y motors. Unknown and oil pump sensor is different from the stock location, also now have direct injection. Would not recommend using if possible
J37A variation. Unknown if they are direct drop in for now. Might be if they have the same bellhousing as the TL-s and gen8 accord. Would not recommend using if possible
Frank motors
J30 Block + J35 crank and rods = J32 - 3.2L displacement **you get to keep stock block for inspection**
J30 Block + J37 crank and rods = J33- 3.3L displacement **you get to keep stock block for inspection**
J32/J35 Block + J35 crank and rods = J35- 3.5L displacement
J32/J35 Block + J37 crank and rods = J36 - 3.6L displacement
J32/J35 Block bored to 90mm + J37 Crank, Piston, and Rods = J37- 3.7L Displacement
MT Transmission
J30a4 and J30a5 direct drop in but does not have LSD for motor J30A4, J30A5, and J32a3 version 1.

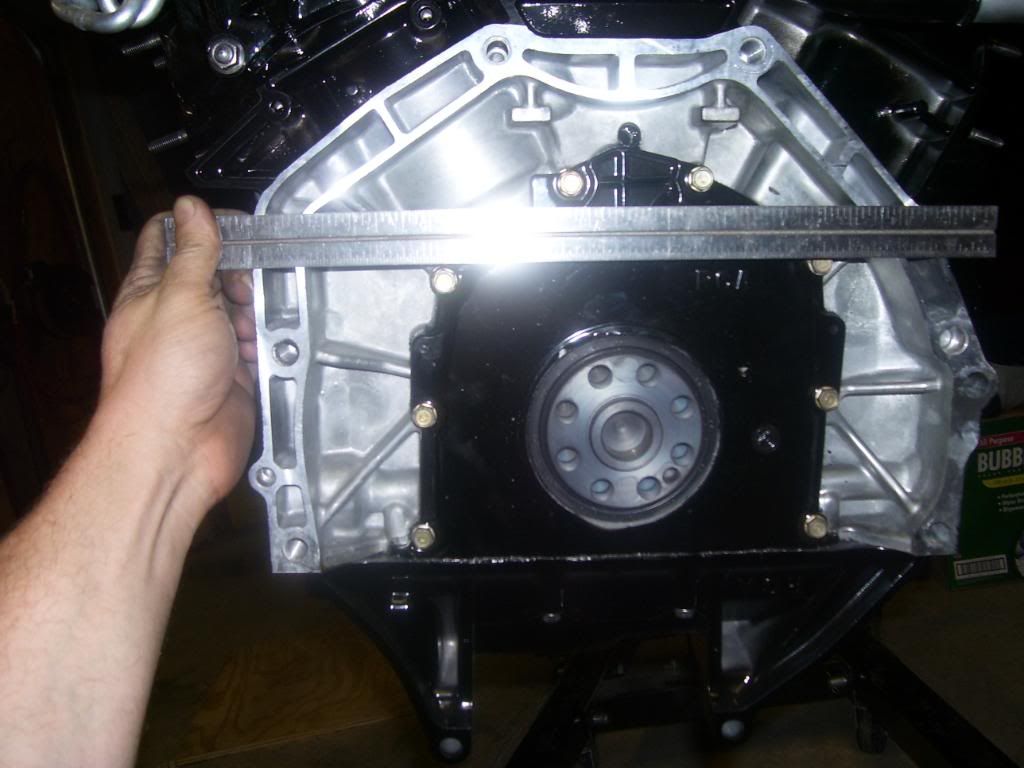

Borrowed from Paul photbucket
J35a8 direct drop in and has LSD in J32a3 version 2 block 2007-2008, J35a8, and maybe J37a variation **unknown**

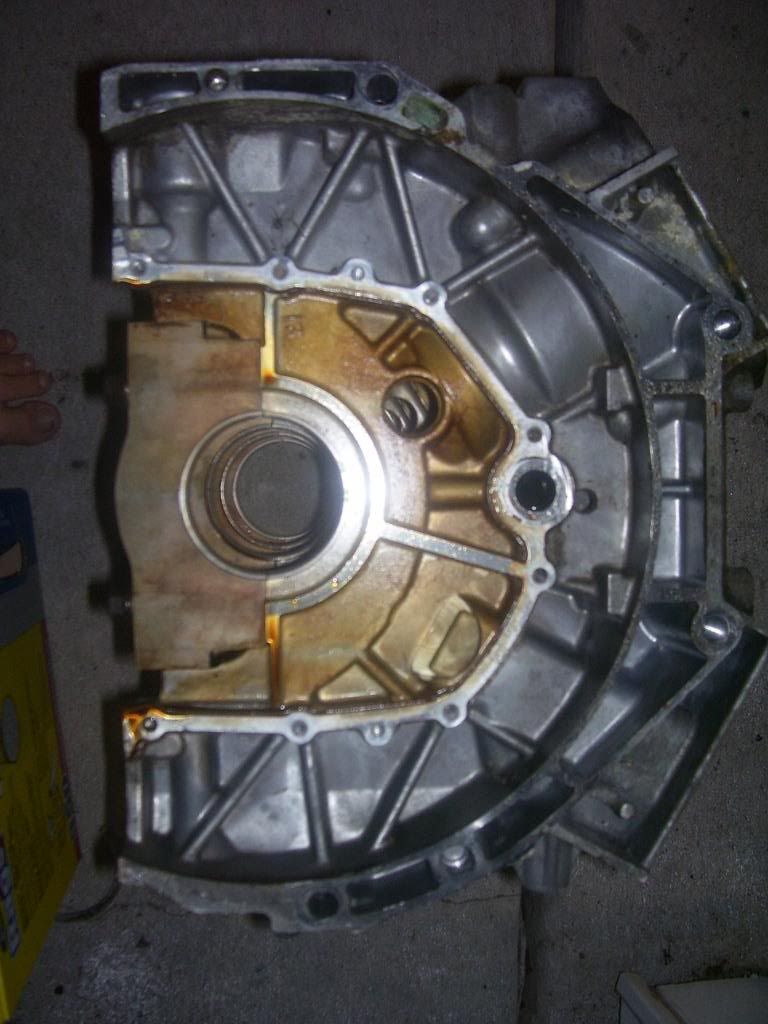

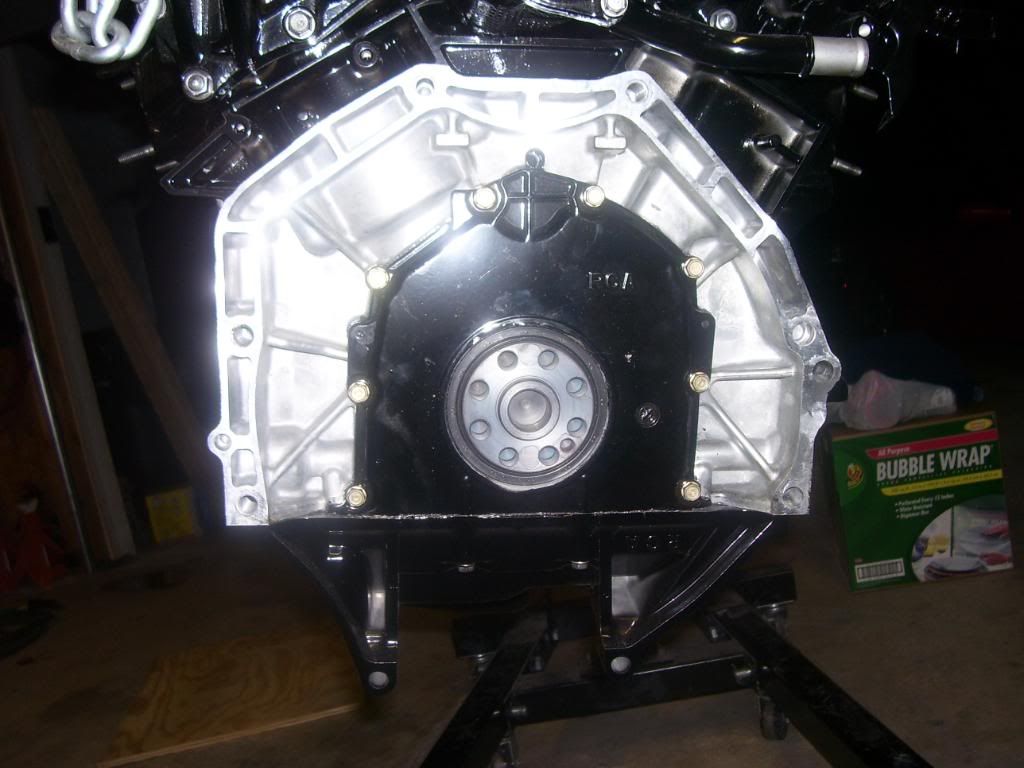

Borrowed from Paul
belt housing part number to get it to fit j35a8 block 21000-RDE-305 **Correct as of 3-1-16
J32a3 version 1 2004-2005 direct drop in and has LSD for motor J30A4, J30A5, and J32a3 version 1
OEM piston info
4-06 TL pistons for a 10:1 compression ratio
03 CL-S pistons for a 10.5:1 compression
05+ RL or 07+ TL-S pistons for 11:1 compression. They are also factory forged to save weight, not for strength. This is why people with j35 cannot run high boost for long before they crack a skirt.
More updated info on piston here
89mm K-series pistons and J32/j35 compatibility - AcuraZine Community
** If planning to go boost I recommend a CR of 9.5:1 and possibly 10:1 with forged piston. The main thing is to prevent detonation. Don't worry about timing advance, you can just crank up the PSI to make up the difference. stock piston/ rod combination will work, but I am unsure of the longevity.
Also I am not responsible if the motor and trans combination does not work. I have researched all this crap and spent a butt load of time on it. So you're welcome!!
Note all motor swap will run on the J30 ecu, but they may or may not lean out depending on the modification that you have done. It is recommended that you run the correct ecu with the motor, or just get hondata flashpro. Flashpro will give you more option vs running the stock ecu especially if you want to run larger camshaft or go boost.
My personally recommendation is get to hondata flashpro first. Everything else can be bought at a lower price since the price of engine and transmission will always lose value over time. Flashpro and the ecu harness new do not get cheaper because hondata has a monopoly **until K-tuner comes out with something**. If you see a flashpro for cheap in the FS you buy it, there are probably 500 flashpro units floating around for the accord and TL. There are thousands of engine that you can choose from and they number keep growing everyday since people do get into accidents and total their cars.
